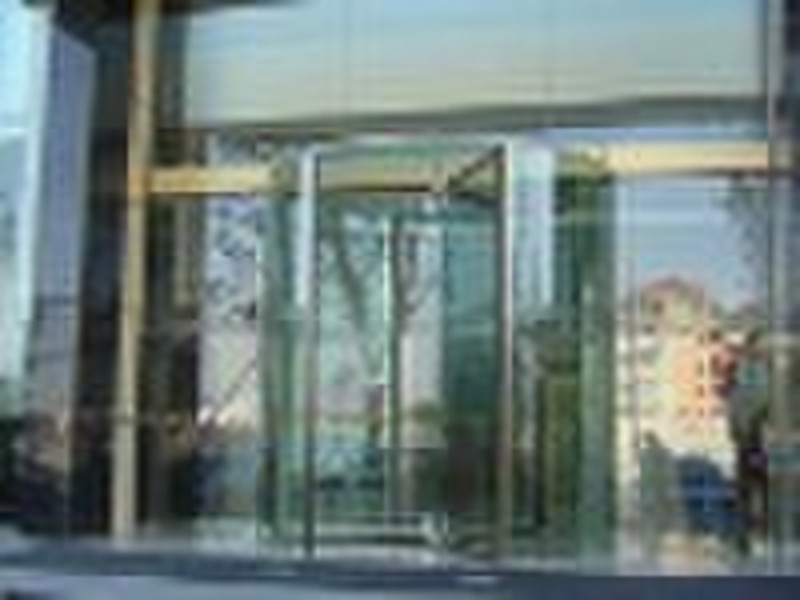

full glass revolving door

glass revolving door 1.Max diameter:2.8m 2.Auto or mannual. 3.Structure or driving system are optional. 4.Drawings are available. 5. Structures are optional, such as carbon fluorine painting, stainless stell, etc. Size Inner diameter Outer diameter Clear passage width(3-wing) Clear passage width(4-wing) Cornice height Door height 1600 1730 700 1055 300 2200 1800 1930 800 1195 300 2200 2000 2130 900 1335 300 2200 2200 2330 1000 1475 300 2200 2600 2730 1200 1755 300 2200 2800 2930 1300 1895 300 2200 3000 3130 1400 2035 300 2200 3200 3330 1500 2175 300 2200 3600 3730 1700 2455 300 2200 3800 3930 1800 2595 300 2200 Unit: mm Safety&protection Anti-bump: Emmergency: Diabled: Safety glass: Technical data: Voltage&frenquency Current rating Power rating Power of motor AC220/50HZ 4A 300W 180W Façade options Stainless steel: our advanced manufacturing and first-rate digital facilities can make sure the surface decoration to meet customers requirement idealty.
